Hout Bay, Cape Town
2 – 9 Dec, 2025
7 Day Duration
Wooden Pergola Installation Hout Bay
A 10.5m lean-to structure designed for the rugged Hout Bay coastline, blending seamless aesthetics with structural permanence.
Project Overview
The client wanted a long, clean pergola that would run the full length of their outdoor area and tie in neatly with the existing house structure.
Type
Lean-to wooden pergola
Size
10.5m L × 2.8m W
Materials
CCA H3 Treated Pine
Finish
Rystix Timbacre (Oak)

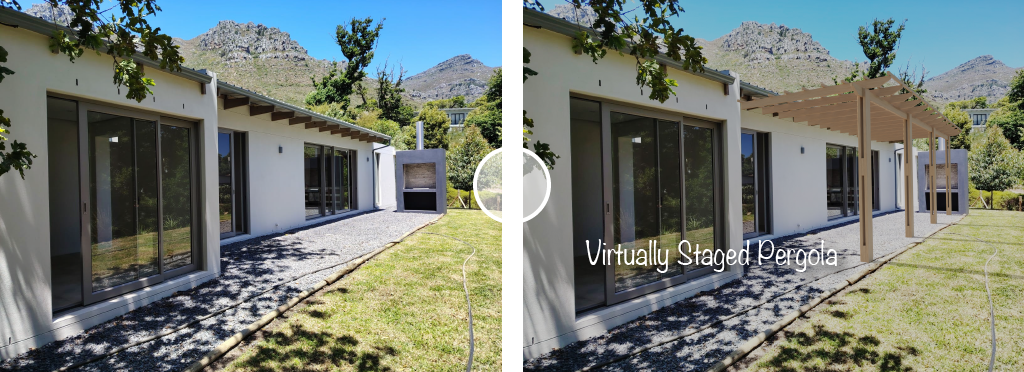

Virtual Staging
See It Before
We Build.
Before any physical work began, we created a 3D virtual model of the pergola. This allowed the client to make confident decisions before construction started.
Visualise the pergola in its actual space.
Adjust dimensions, placement, and roof alignment.
Make confident decisions before construction.
“Seeing a realistic 3D version first gives our clients peace of mind and ensures the finished pergola looks exactly as they imagined.”
The Client’s Challenge
Hout Bay properties are often exposed to changing weather conditions, including wind and moisture from the coast. In this case, the pergola also needed to be attached to the house, which meant alignment and load transfer were critical.
Primary Concerns
Long-term stability
Structural integrity against seasonal Cape winds.
Proper anchoring
Secure foundations to prevent shifting over time.
Visual Alignment
Matching the existing roof rafters for a seamless look.
Timber Durability
Selecting materials that age well in coastal salt air.
Design Approach & Structural Decisions
This pergola was designed as a lean-to structure, attached to the house wall and supported by ground-anchored columns along its length.
Precision Alignment
Aligning all pergola rafters precisely with the existing roof rafters on the house wall, ensuring clean load paths and consistent visual proportions over the full 10.5m length.
CCA H3 Treated Pine
Selected for its structural suitability in outdoor and ground-contact environments.
Visual Spacing
Proportions were kept consistent to avoid visual sag or uneven spacing over the long span.
Load Distribution
Column positions set to match the rafter layout for optimal structural behaviour under load.
Footings, Fixings & Stability
Each column was anchored into concrete footings with a steel shoe, holding the timber 50mm above ground level to prevent moisture absorption.
Columns
152mm × 50mm posts
Main Beam
228mm × 50mm
Battens
50mm × 38mm
Fixings
Stainless steel screws throughout
Brackets
Hot-dip galvanised rafter brackets
Wall Fixings
Stainless steel coach screws
The Installation Process
A meticulously planned seven-day timeline from initial setup to final stability checks.
Critical Step
“Sealing of the timber was intentionally delayed by five days to allow excess moisture to escape, ensuring better absorption of the sealant.”
01
Accurate setting out for column and rafter alignment
02
Casting concrete footings and installing post shoes
03

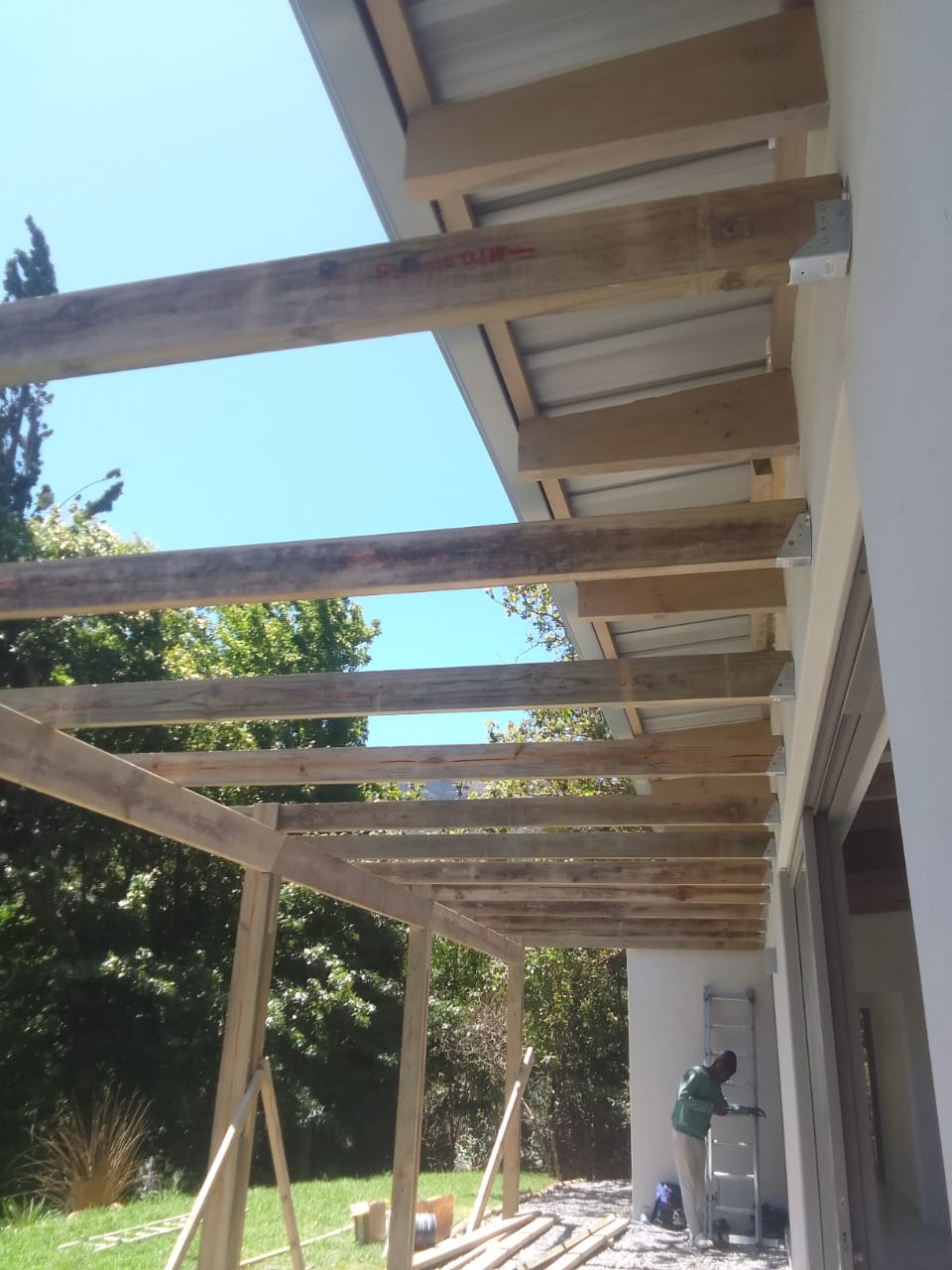

Installing beams and rafters to match the positions of rafters on the house
04

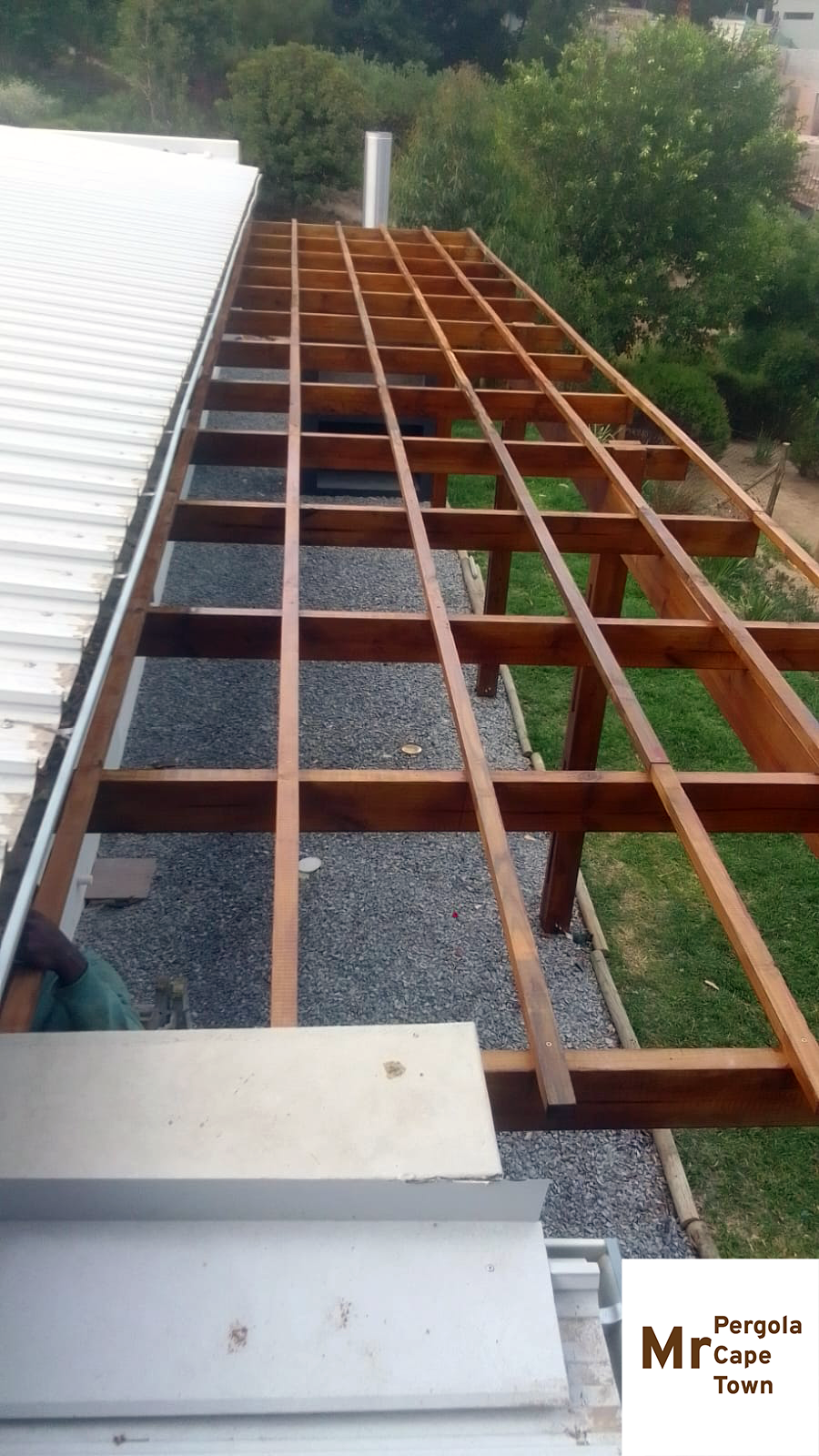

Fixing battens evenly across the pergola length
05
Final checks for alignment, spacing, and stability

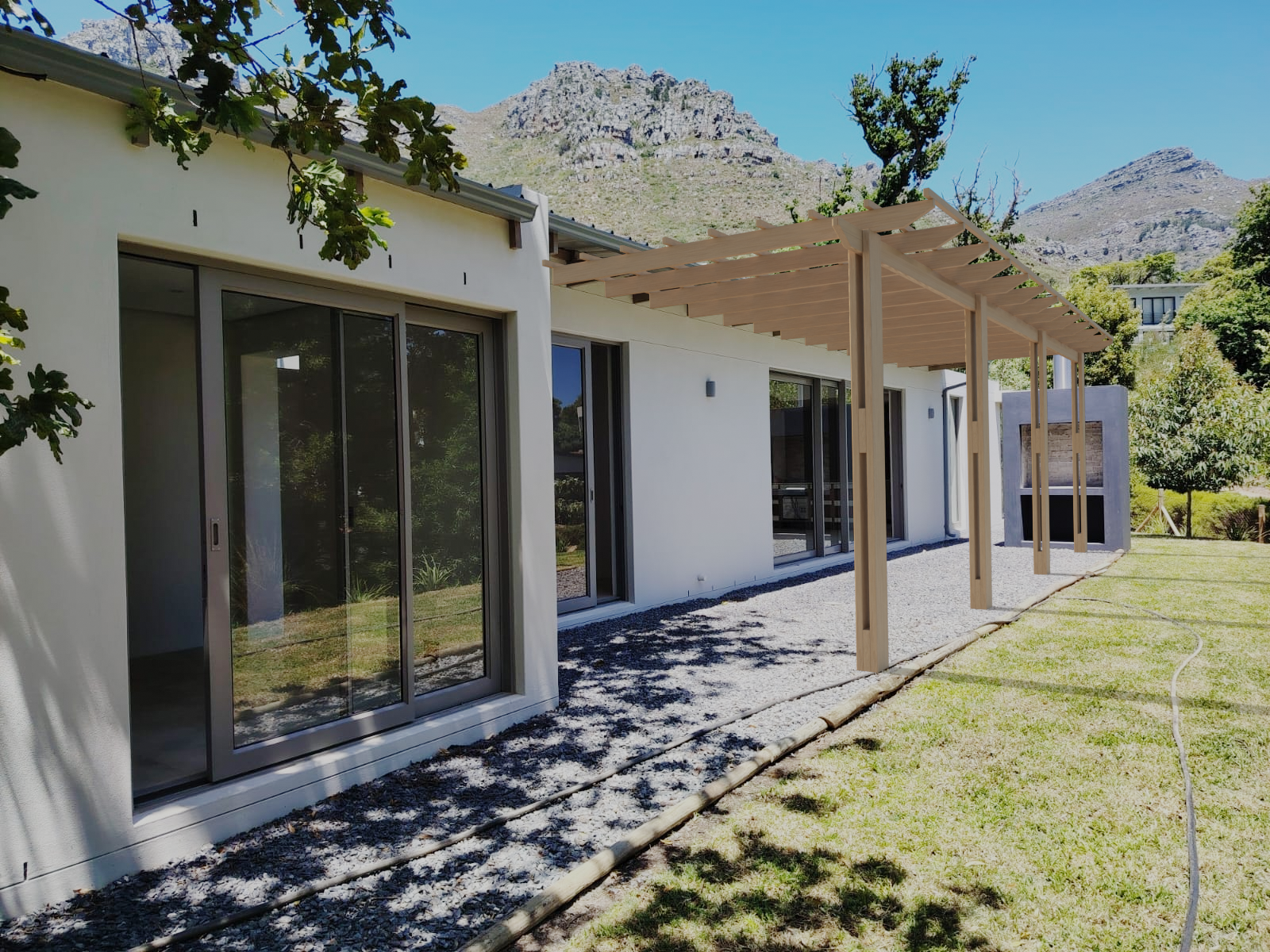

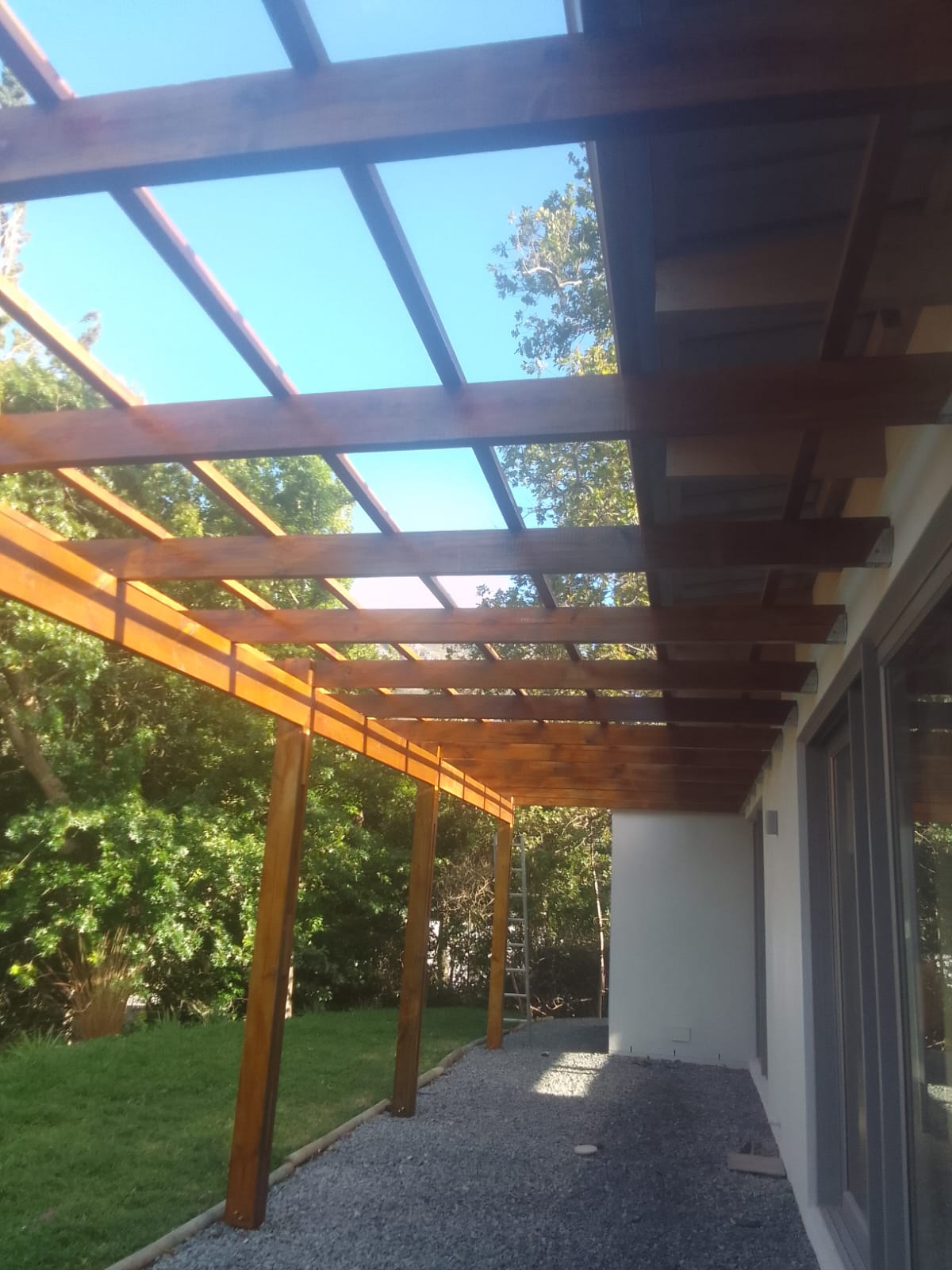

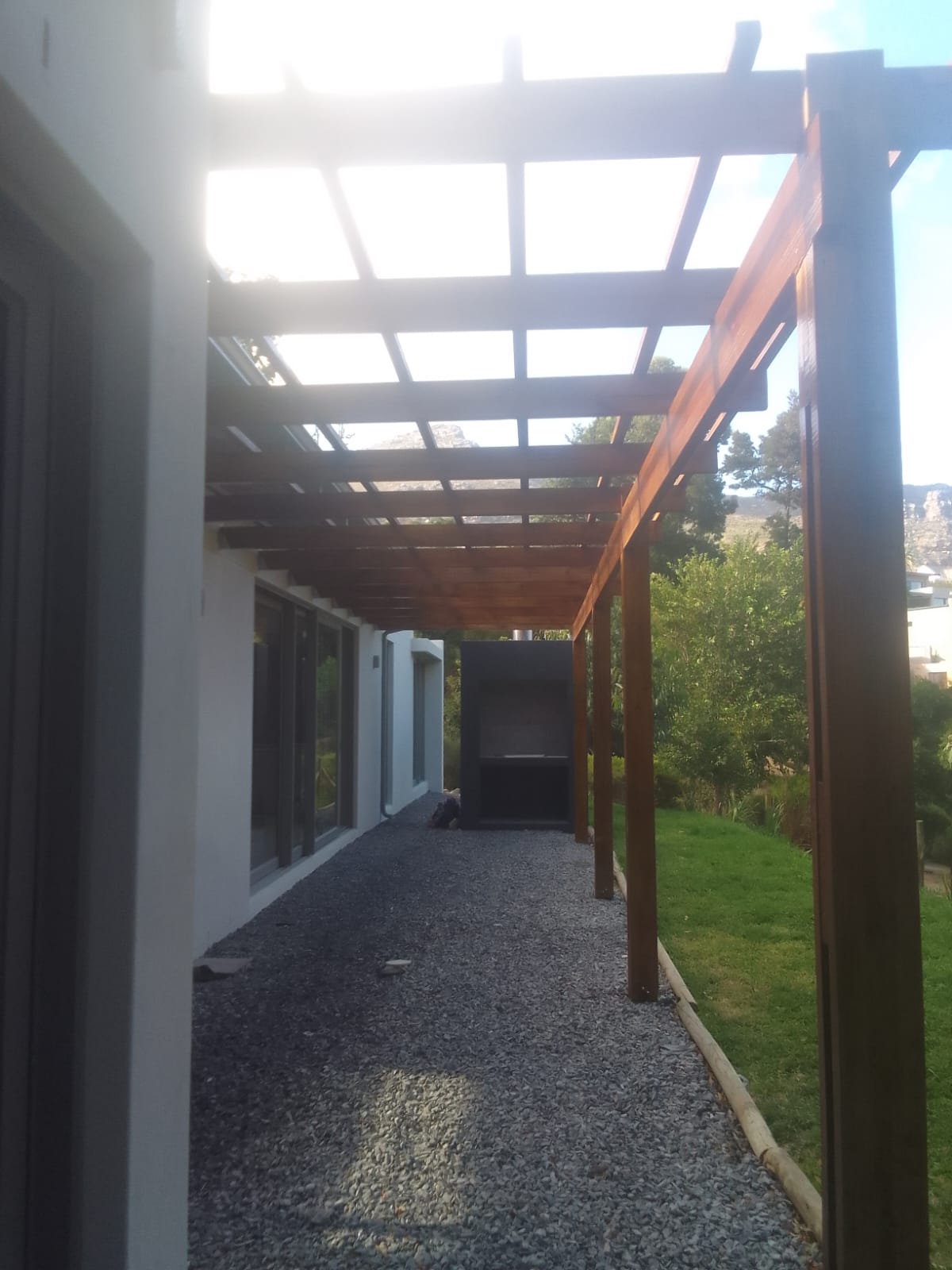

The Final Result
The completed pergola provides a functional shaded area that integrates seamlessly with the home. The oak-toned finish gives the space a warm, natural look without overpowering the property.
More usable throughout the day
Visually balanced across the full length
Structurally solid & well-anchored
Coastal condition ready
Why This Pergola Will Last
- Ground clearance on all posts
- Proper structural sizing of beams
- Stainless steel and galvanised fixings
- Delayed sealing for better performance
- Premium Rystix Timbacre wood sealant
“In coastal areas like Hout Bay, anchoring matters just as much as the timber itself. By lifting the posts off the ground, you remove a lot of future problems before they start.”
